LC LED-SLT-775RGBE: PLCC RGB SMD LED
LC LED Power

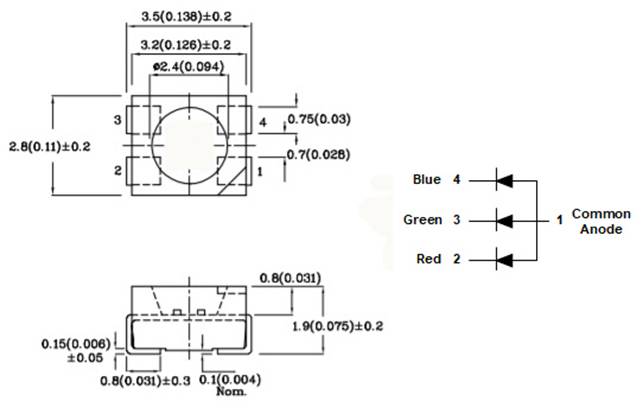

Top RGB SMD LED (120 Degree) Common Anode
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Suitable
for SMT Assembly |
|
(2) Super Bright
Tri-Color 5mm Red, Green & Blue LED |
(5) Sun Light
Viewable SMD LED |
|
(3) Excellent Color
Mixing Characteristics |
(6) Rugged Design
Suitable for Both Indoor & Outdoor |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
RED |
GREEN |
BLUE |
UNITS |
|
DC Forward Current |
25 |
30 |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
100 |
100 |
mA |
|
Reverse Voltage (IR
= 100mA) |
5 |
5 |
5 |
VR |
|
Operating Temperature |
-30
to +85 |
0C |
||
|
Storage Temperature |
-30
to +85 |
0C |
||
(1) Pulse Conditions
of 1/10 duty cycle and 0.10msec max. width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF (Red) |
IF
= 20mA |
1.7 |
|
2.3 |
V |
|
Forward
Voltage |
VF (Green) |
IF
= 20mA |
3.0 |
3.0 |
3.5 |
|
|
Forward
Voltage |
VF (Blue) |
IF
= 20mA |
3.0 |
3.0 |
3.5 |
V |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
|
625 |
|
nm |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
|
525 |
|
nm |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 20mA |
|
465 |
|
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
120 |
|
Deg. |
|
Luminous
Intensity |
IV
(Red) |
IF
= 20mA |
300 |
|
650 |
mcd |
|
Luminous
Intensity |
IV
(Green) |
IF
= 20mA |
500 |
|
1,000 |
mcd |
|
Luminous
Intensity |
IV
(Blue) |
IF
= 20mA |
300 |
|
500 |
mcd |
|
LC LED Corporation |
